What is a SOSA Aligned Backplane?
A SOSA-aligned backplane is often a requirement for modern defense programs. Learn what makes a backplane “SOSA-aligned” and how we bring these requirements into the real world.
On paper, the requirement looks simple: "Backplane must be compliant with SOSA." It looks clean, compliant, and straightforward on an RFQ for a C5ISR or Electronic Warfare systems.
In reality, procuring a SOSA-aligned backplane is not so cut-and-dry. In fact, the Sensor Open Systems Architecture (SOSA™) Technical Standard does not actually define a backplane at all; it only specifies the slot profiles (the specific pinouts and connector types) that the backplane must support.
What’s more, the SOSA Consortium is still working on the criteria for verifying that a backplane is SOSA compliant, meaning that there is no formally verified “SOSA Compliant backplane” anywhere on the market today.
How, then, does a backplane meet the U.S. Department of Defense's mandate for a Modular Open Systems Approach (MOSA)? The answer requires looking past the backplane as a standalone component and seeing it as a routing architecture.
When engineers specify a "SOSA-aligned backplane," they are looking for a design that forces VITA 65 hardware to comply with SOSA. The backplane must support the mandated data, control, and expansion Planes while preserving the signal integrity required by modern sensors.
Pixus Technologies provides the infrastructure that brings SOSA requirements into the real world. We design backplanes that resolve the conflict between rigid SOSA slot definitions and the physical realities of deployment, supporting everything from lab-based development chassis to ruggedized units in the field.
Here, we’ll define a SOSA-aligned backplane and explain the basics of what sets it apart.
VITA 65 vs. SOSA: What’s the Difference?
To understand the specific requirements of a SOSA-aligned backplane, it helps to distinguish it from the standard it relies on.
ANSI/VITA 65 (OpenVPX) provides the foundational architecture for high-performance embedded systems. It sets the mechanical and electrical standards for 3U and 6U VPX modules, backplanes, and chassis to enable broad interoperability.
The challenge with VITA 65 is that it offers dozens of backplane profiles with pre-defined routing, creating immense variability. A module from one vendor might physically fit a slot but fail to communicate with a neighbor if their data paths, such as centralized switching versus distributed mesh, do not line up.
The SOSA Consortium resolves this by acting as a "standard of standards." Instead of writing new hardware specifications from scratch, it applies a strict filter to the VITA 65 library.
SOSA selects a narrow subset of slot profiles (primarily 3U and 6U) to ensure Plug-In Cards (PICs) from different vendors function together. This defined blueprint accelerates system integration and reduces the risk of incompatibility.

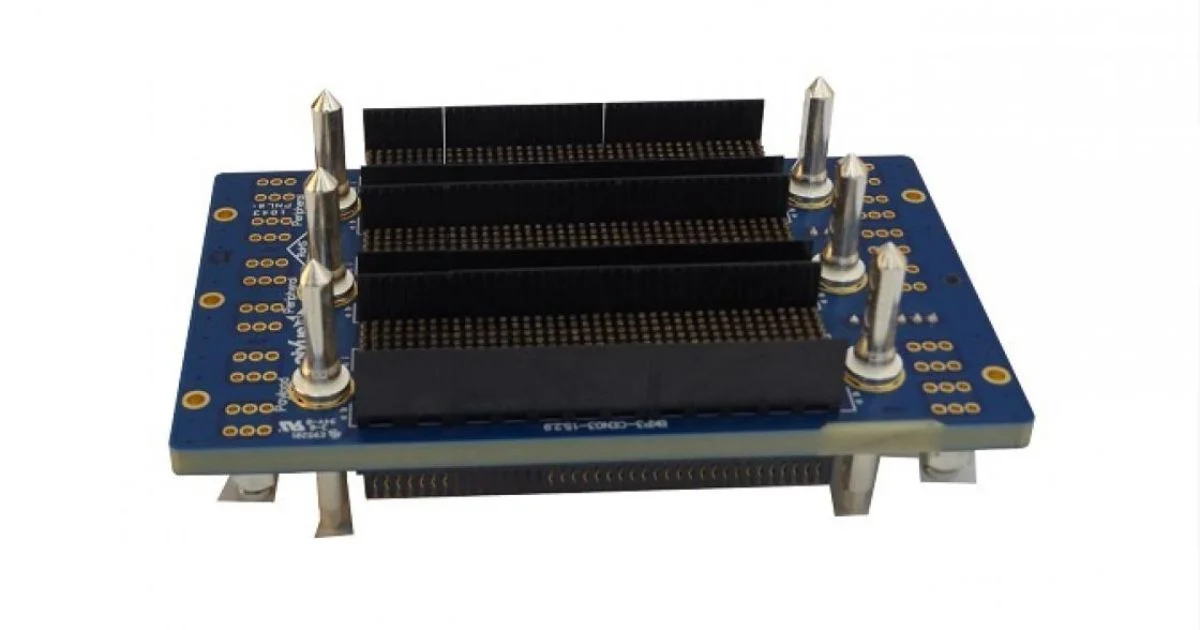

What is a SOSA-Aligned Backplane?
The SOSA Technical Standard functions as a collection of slot profiles, not a catalog of rigid backplane maps.
Unlike VITA 65, which provides specific catalog numbers for fixed backplane layouts, SOSA defines only the slot profiles. These slot profiles are differentiated by:
Type (payload, switch, radial clocks, or external I/O.)
Planes and other communications ports (coaxial connections, etc.)
No single VITA 65 backplane profile is "SOSA-aligned" by default. We achieve SOSA alignment by engineering its routing to comply with the standard's intent.
To be considered a SOSA-aligned backplane, a backplane design must:
Use the specific pinouts and connector types required by the standard, including VITA 66/67 for optical and RF signals; and
Map the data, control, and expansion planes in accordance with SOSA to improve system-wide interoperability.
Note that a backplane can be considered SOSA-aligned even if it includes some non-SOSA slots (such as those requiring legacy 5V power) alongside the compliant slots, provided the intent is to meet the standard where applicable.
The Anatomy of a SOSA-Aligned Backplane
Since the standard provides the rules but not the map, the physical backplane does the heavy lifting. The hardware has to be engineered to withstand the specific physical stresses imposed by the slot profiles. Some of the specific attributes that set a SOSA-aligned backplane from standard VPX hardware include:
1. High-Speed Signal Integrity
One of the driving forces behind SOSA is the need to handle massive data loads from modern sensors, including Radar, rugged SDRs, EO/IR, and Electronic Warfare systems. While legacy backplanes often targeted PCIe Gen 3 (8 Gbaud/s), SOSA pushes the baseline past 40 GbE. Today, 100 GbE (4x lanes of ~25 Gbaud/s) and PCIe Gen 4 have become the standard.
2. Simplified Power Architecture
SOSA streamlines embedded system power architecture. Unlike legacy VPX systems that relied heavily on 5V, SOSA slot profiles primarily utilize a 12V (VS1) main power rail, along with 3.3V AUX.
While this simplifies the requirements for the Power Supply Unit (PSU), it means that the backplane must also be able to handle higher current loads efficiently on the 12V plane.
3. Mandatory Chassis Management
A SOSA-aligned backplane must support VITA 46.11 using a Hardware Management Card (HMC) or chassis manager. This allows for Tier 3 system management, monitoring power supplies, fan speeds, and module health via the Intelligent Platform Management Bus (IPMB).
This management capability does not always require a dedicated slot. SOSA supports mezzanine-based chassis managers, such as the Pixus SHM300 SlotSaver that mounts directly to the rear of the backplane.
Applications of SOSA-Aligned Backplanes
Why go through the effort of forcing ANSI/VITA 65 hardware to conform to strict SOSA routing rules? Beyond the clear business case for SOSA adoption, SOSA-aligned backplanes are designed to support the specific needs of modern warfare. This alignment ensures that critical systems can share a common infrastructure while delivering specific mission capabilities:
ISR (Intelligence, Surveillance, and Reconnaissance): ISR systems rely on high-performance computing to process intensive data from radar, signals intelligence (SIGINT), and Electro-Optical/Infrared (EO/IR) cameras. A SOSA-aligned backplane provides the high-bandwidth architecture necessary to keep pace.
Electronic Warfare (EW): SOSA-aligned backplanes can support the power-hungry CPUs and GPUs common in high-performance EW systems, ranging from tactical communications to EF jamming systems.
Unmanned Systems: Warfare using drones or Unmanned Aerial Systems (UAS) is evolving rapidly. The interoperability provided by SOSA makes it possible to deliver new capabilities to the field faster.
Command and Control (C2): SOSA facilitates the reliable exchange of command-and-control, video, and telemetry signals by establishing a common framework for building interoperable systems across the battlefield network.
However, while these applications share a common standard, they do not always share a common physical footprint.
The Pixus Approach: Modified Standard Solutions
While the SOSA Technical Standard assumes an ideal physical environment, military platforms are rarely ideal. Standard rackmount or ATR chassis shapes might not fit in the avionics bay of a legacy fighter jet, or the vibrating hull of an amphibious combat vehicle.
Standard COTS backplanes might also not account for the ergonomic realities of field maintenance, where technicians need adequate spacing to avoid damaging cables during disconnects.
Pixus Technologies resolves these challenges through Modified Standards solutions. We utilize a proven, SOSA-aligned circuit design to ensure software portability and electrical interoperability, but we adapt the physical form factor to meet the platform's unique constraints. This approach delivers the specific form, fit, and function required without the cost, risk, or lead time associated with full custom builds.
Modified Standards solutions can include:
Geometric Customization: Adapts the physical form factor, such as enclosure depths or backplane shapes, to fit non-standard spaces.
Hybrid Architectures: Enables programs to avoid a total "rip and replace" strategy. A modified chassis can mix new SOSA-aligned VPX slots with legacy VME or CompactPCI segments, deploying new sensor capabilities immediately while retaining critical legacy control hardware.
Thermal Management Integration: With SOSA-aligned cards often exceeding 100W per slot, thermal management is critical. Modified designs integrate necessary airflow baffles or liquid cooling plumbing.
Making SOSA Work in the Real World
Sourcing a SOSA-aligned backplane is about bridging the gap between a paper specification and reality. It requires a routing architecture that rigorously supports SOSA slot profiles while adapting to the constraints of the environment in which it operates; be that onboard a rugged terrain vehicle, high in the sky on an UAV, inside a laboratory, or any one of the many other touchpoints of modern warfare.
Whatever the application, Pixus Technologies provides the infrastructure that transforms your specifications into mission-ready hardware. Our leadership team pioneered some of the industry's earliest AdvancedTCA and MicroTCA designs, and we apply that deep expertise to every high-speed backplane we build today.
If you are defining the architecture for a SOSA-aligned system and need to overcome physical integration challenges, contact the Pixus engineering team. We can provide a solution that fits your requirements.
