AdvancedTCA Shelf HS1, 5U, 6 Slots, Horizontal, AC version

AdvancedTCA shelf HS1, 5 U, 6 slots, horizontal, AC versionAdvancedTCA shelf HS1, 5 U, 6 slots, horizontal, DC version HEAT SIMULATION

5U ATCA Shelf, AC Version

The 5 U shelf version offers optimum application possibilities, e.g. as a test or development system, wherever high performance and a space-saving design is required.

AdvancedTCA Shelf HS1, 5U, 6 Slots, Horizontal, AC version



Click here for more information on the 5U ATCA, Horizontal AC chassis.



5U ATCA Shelf, DC Version

Due to its compact design, the 5 U shelf version offers optimum application possibilities, e.g. as a test or development system, wherever high performance and a space-saving design is required.

  • Conforms to PICMG 3.0 rev. 2.0
  • Hot swap-compatible fan units
  • Specified heat loss of at least 200W/board
  • System monitoring using Shelf Management Controllers (ShMC)
  • Plug & play-compatible for ShMC, Intel WT or PP 500
  • Fully assembled, wired and function tested

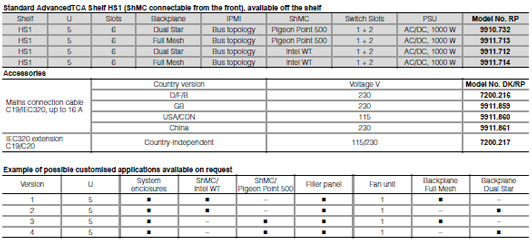

Spreadsheet info from page 489 HB
