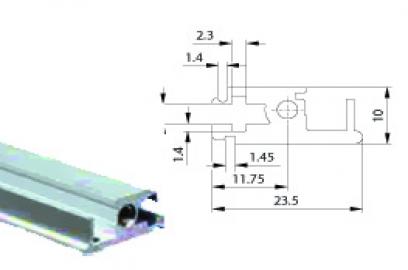

Part Profile and Dimensions


To accommodate guide rails and for attachment of Z rails, insulating strips or contact strips.

  • HP pitch pattern of holes for precise installation of guide rails
  • Channel to slide in cover plates
  • Threaded inserts (PS3684610) are additionally required for mounting backplanes/Z rails
  • M4 thread at ends
  • Straight-through core hole
  • Not suitable for mounting under cover plate


Surface Finish:
Clear chromate

Material:
Extruded aluminum

Rear Horizontal Rail With Channel For Ripac ECO (C4)

Note: M4 x 12 assembly screws should be ordered separately.
