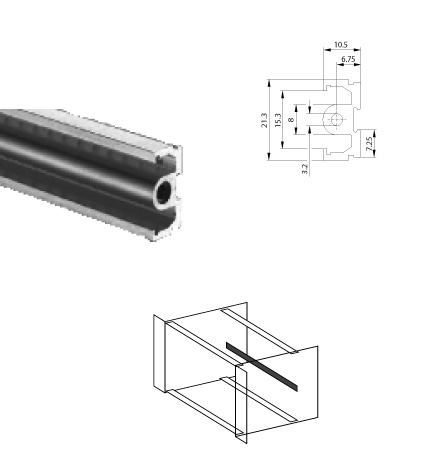

Part Profile and Dimensions


When using 6 U PCBs or modules.  Mounting facility for Z rails, insulating or countact strips and backplanes.

  • 84 threaded holes M2.5
  • M4 thread at ends
  • Straight-through core hole
  • Horizontal rail 192HP for cutting to length

Surface Finish:
Clear chromate

Material:

Extruded aluminum
Flash anodized

Rear Horizontal Rail Center D1

Rear Horizontal Rail Center D1 Assembly screws order info
