Part Profile:

Metal injector/extractor handle for insertion and removal of connectors with a large number of pins (up to 835 N). This handle was specifically designed for use in telecom applications.

  • Only for use in conjunction with front horizontal rails with a 10 mm extension.
  • Optionally available with 1/2HP offset
  • Option of installing keys
  • Optional integral microswitch for “live insertion” applications
  • ESD pin to dissipate static charges
  • Metal design for use in aggressive atmospheres

    Material:

    Die-cast zinc

    Supply Includes:

    Injector/extractor handle, assembly parts

    Accessories:

    Keys
    Keyable guide rails
    Keyable guide rails with offset
    Microswitch

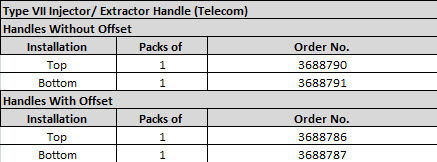

    Type VII Injector / Extractor Handles, (Telecom)
