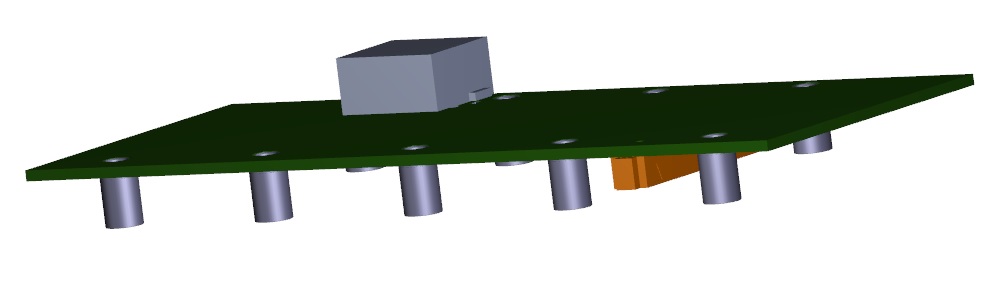

Pixus offers various accessories for OpenVPX systems including power supplies, VITA 62 power interface boards, VITA 46.11 / SOSA VPX chassis managers (Chassis Management Card) & backplane interface cards / mezzanine, faceplates/handles, and more.
Ask about our rugged horizontal rails for OpenVPX and high insertion-force systems. Contact Pixus for RTM cabling options.

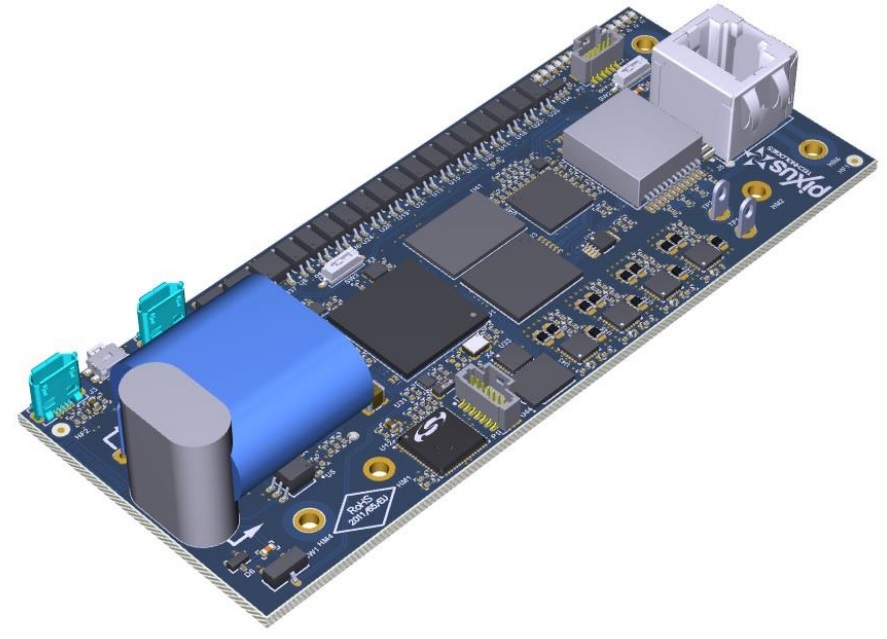

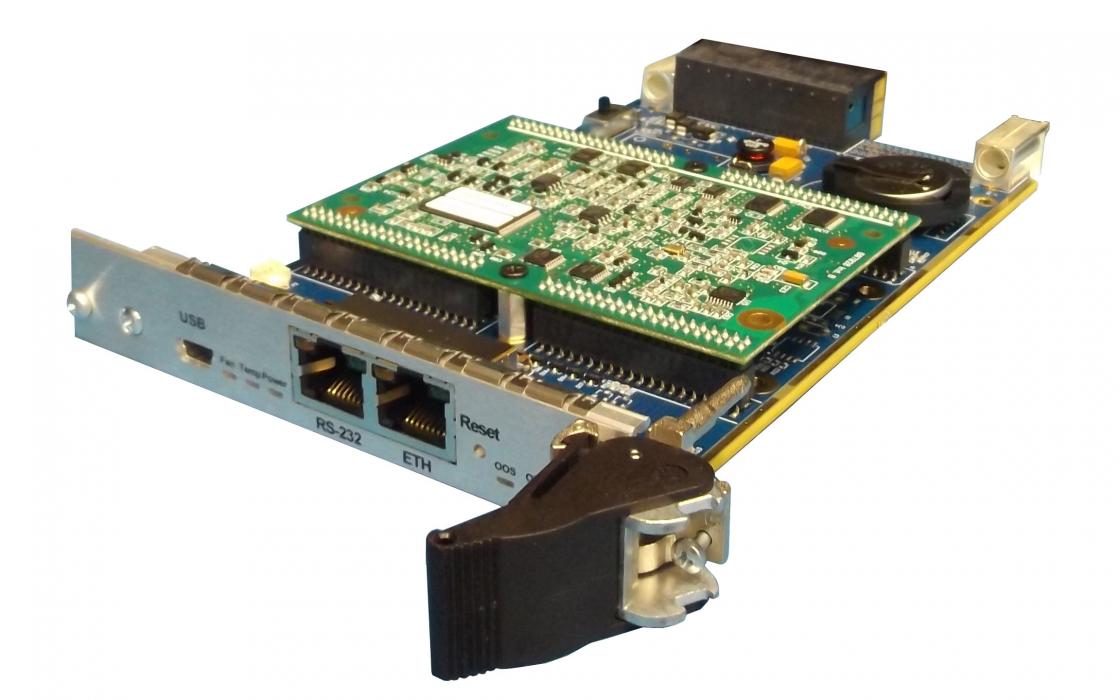

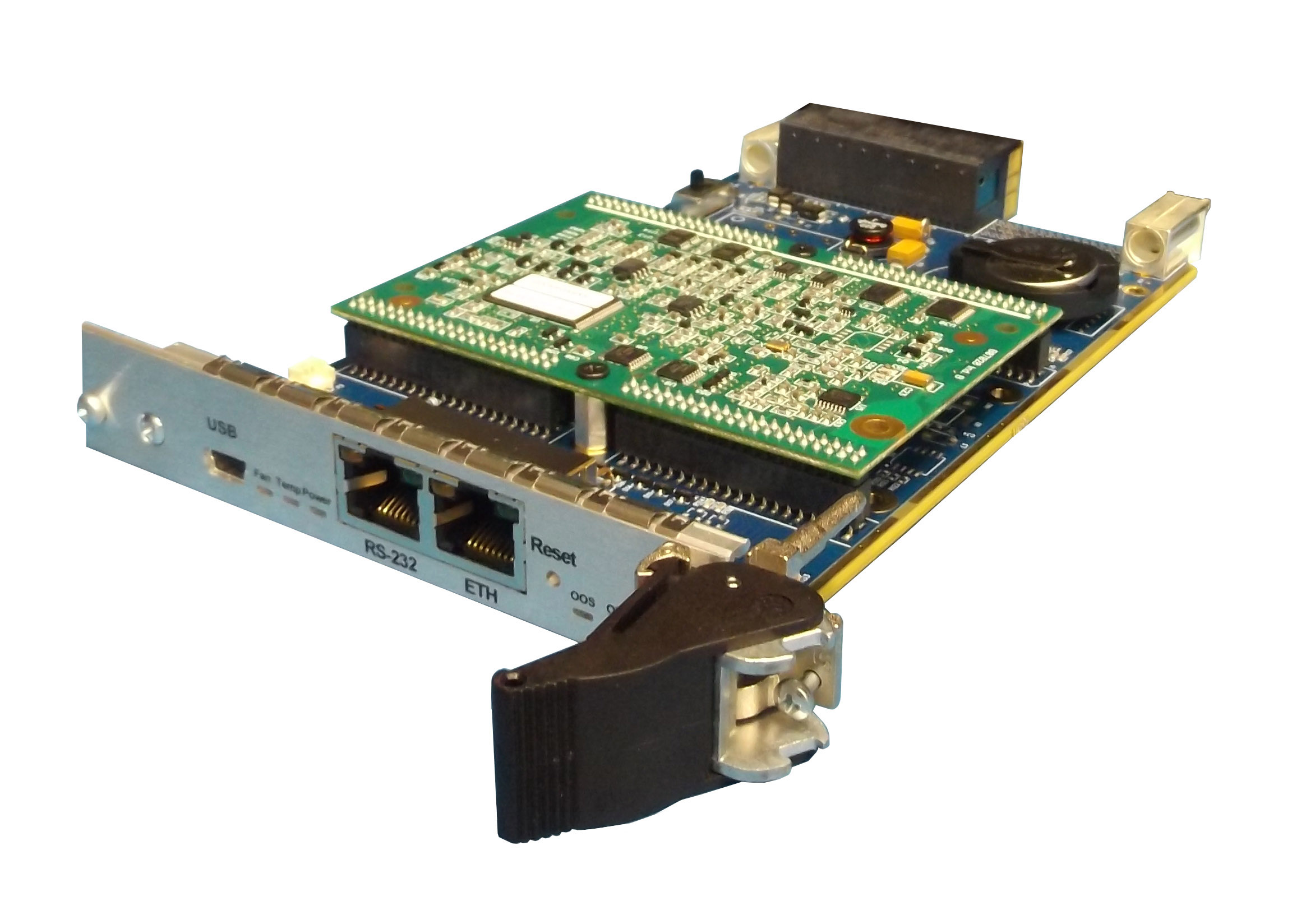

Compliant to the VITA 46.11 specification and aligned with the SOSA Technical Standard, the OpenVPX hardware chassis manager comes in various ChMM and configuration options. SHM300 Chassis Management Card meets Tier 3+ requirements for SOSA.

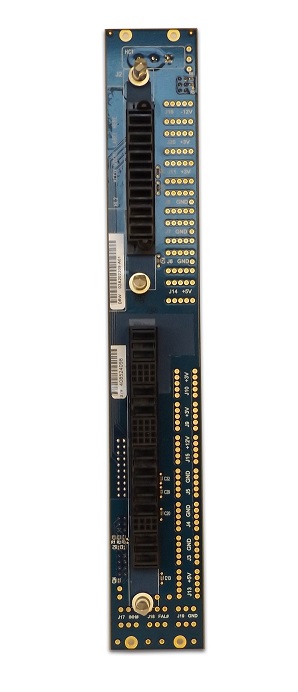

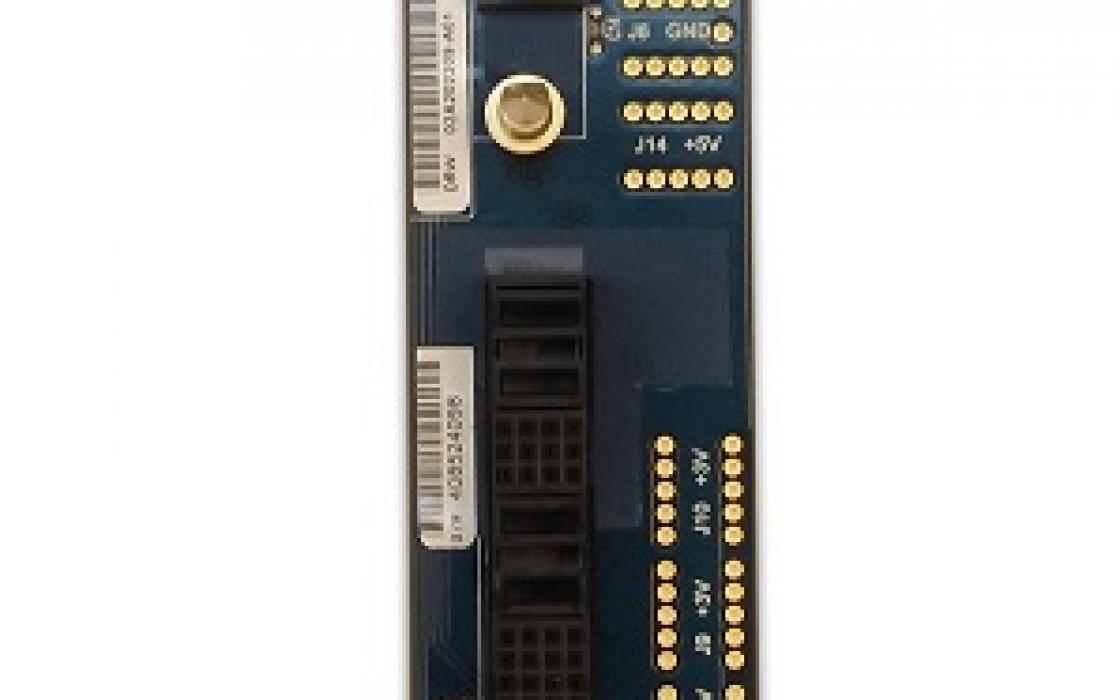

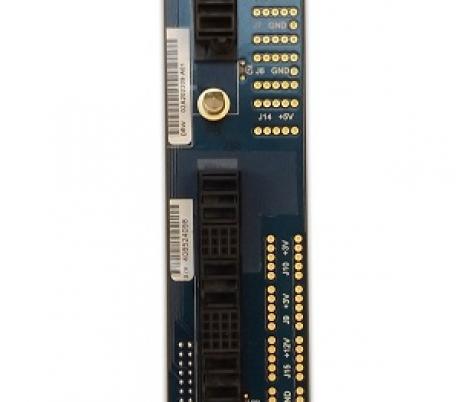

3U and 6U power interface boards for VITA 62 compliant power supplies. Various configurations available. VPX, OpenVPX.

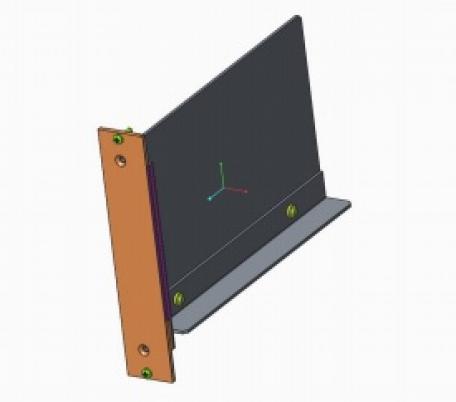

Plug in boards with or without injector/ejector handles for blocking the airflow in an otherwise empty OpenVPX slot. 3U and 6U sizes in 5HP (1.0") width.

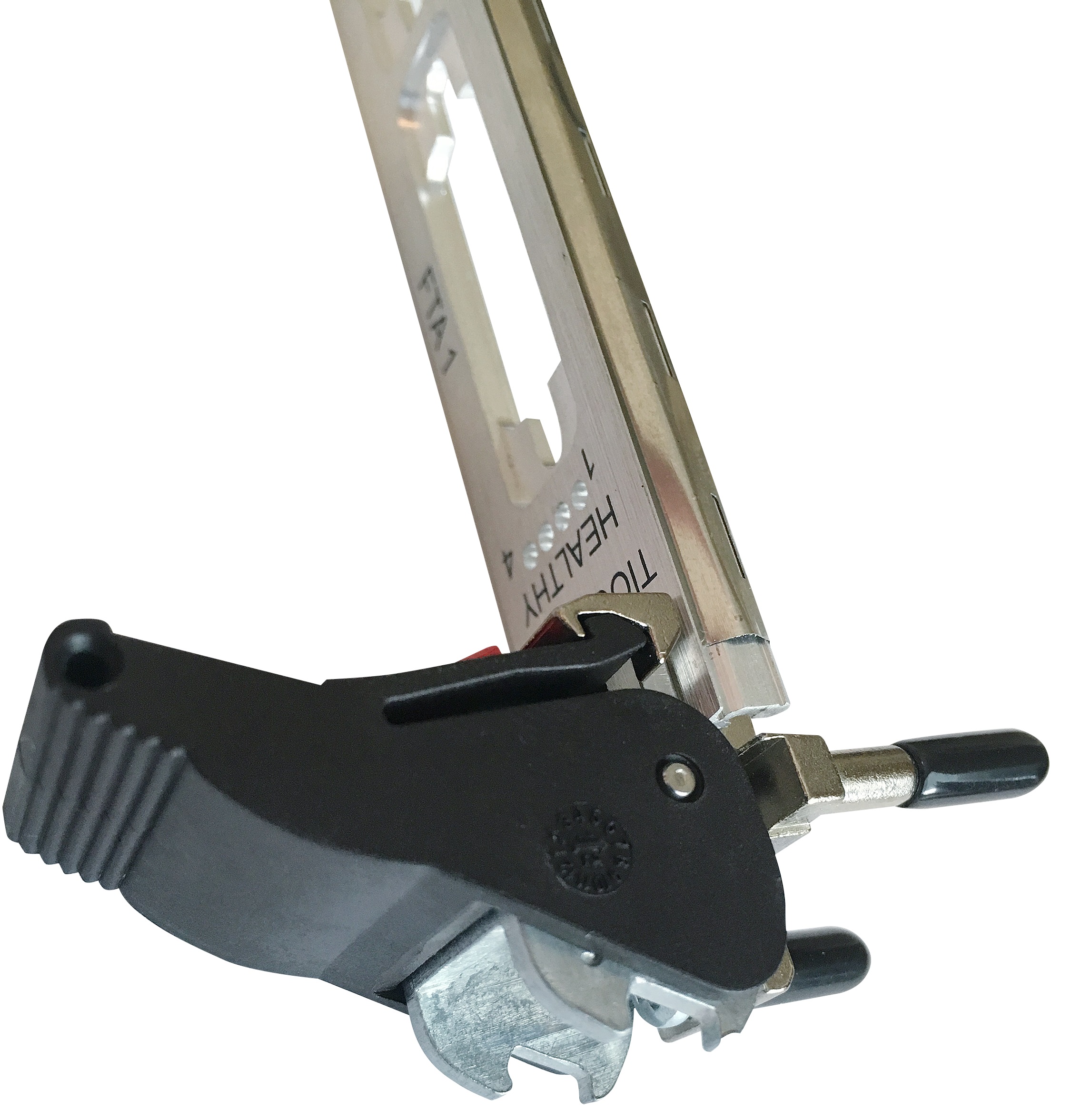

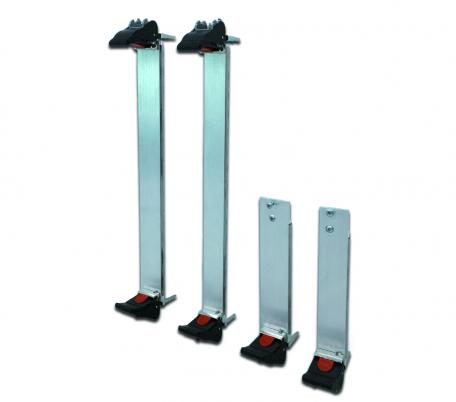

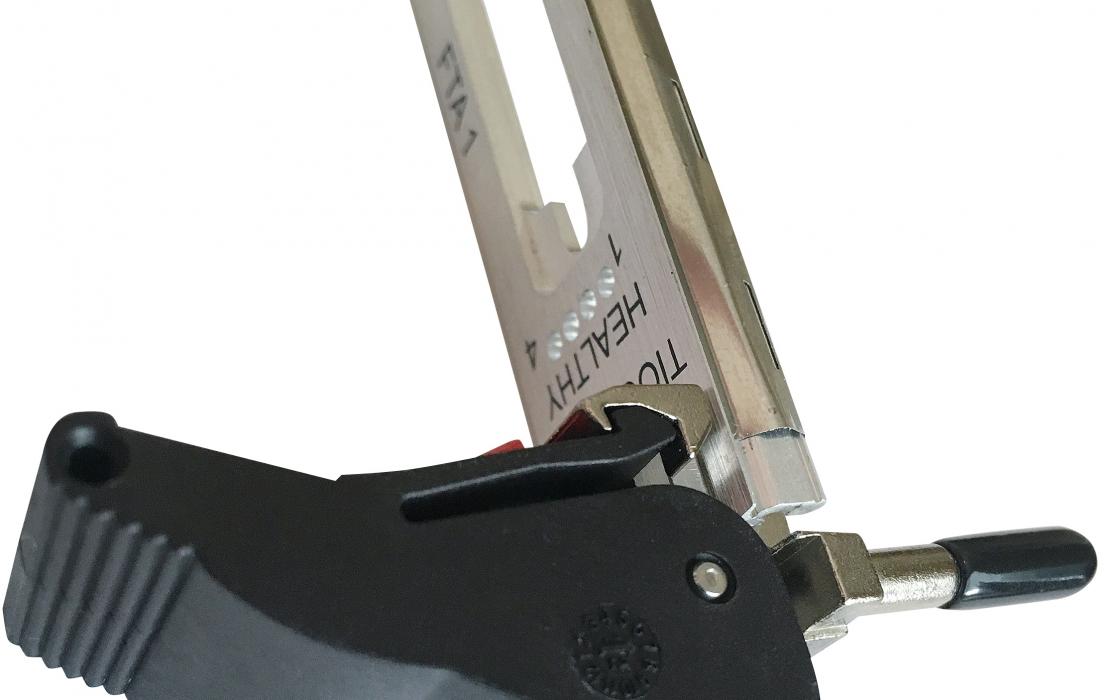

The Pixus OpenVPX handle/panel sets feature a rugged metal engagement "claw" that prevents breaking and wear. The SlimLine model has a long, thin handle for high insertion forces while saving panel space. Pixus offers customized cut-outs, silkscreening, and more.

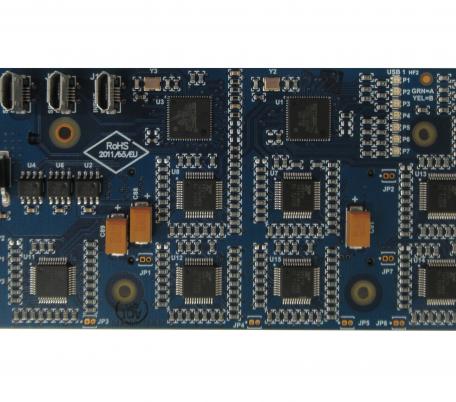

The Pixus Serial MUX boards provide for the condensing of multiple serial ports into one compact interface. This solution can save significant I/O panel space in a chassis platform. Versions for USB input to USB/RS-232/Chassis Manager MUX, RS-232 input to USB/RS-232/Chassis Manager MUX, and a JTAG MUX.
