Pixus and its predecessors at Kaparel/Rittal have created some of the most innovative and successful AdvancedTCA Shelves in the industry. The chassis platforms come in SlotSaver horizontal mount and NEBS-ready vertical mount. Contact Pixus for ruggedized solutions.

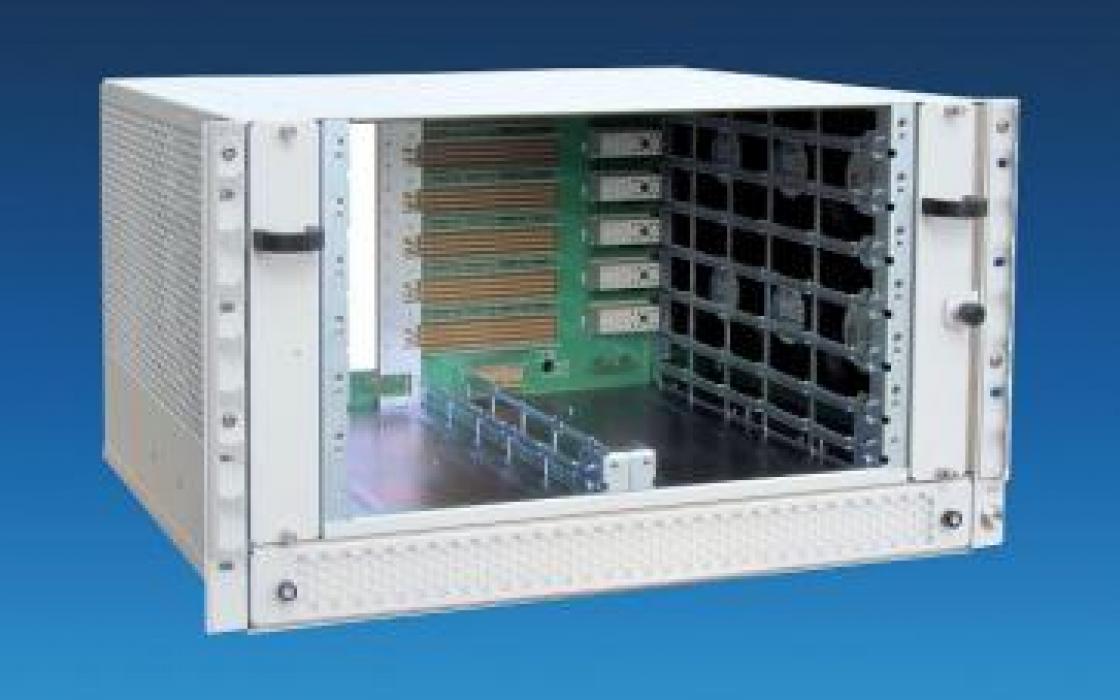

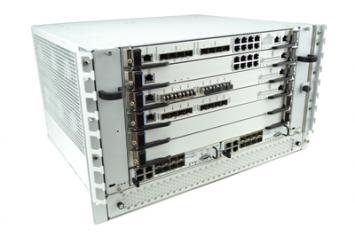

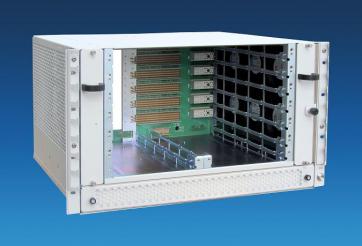

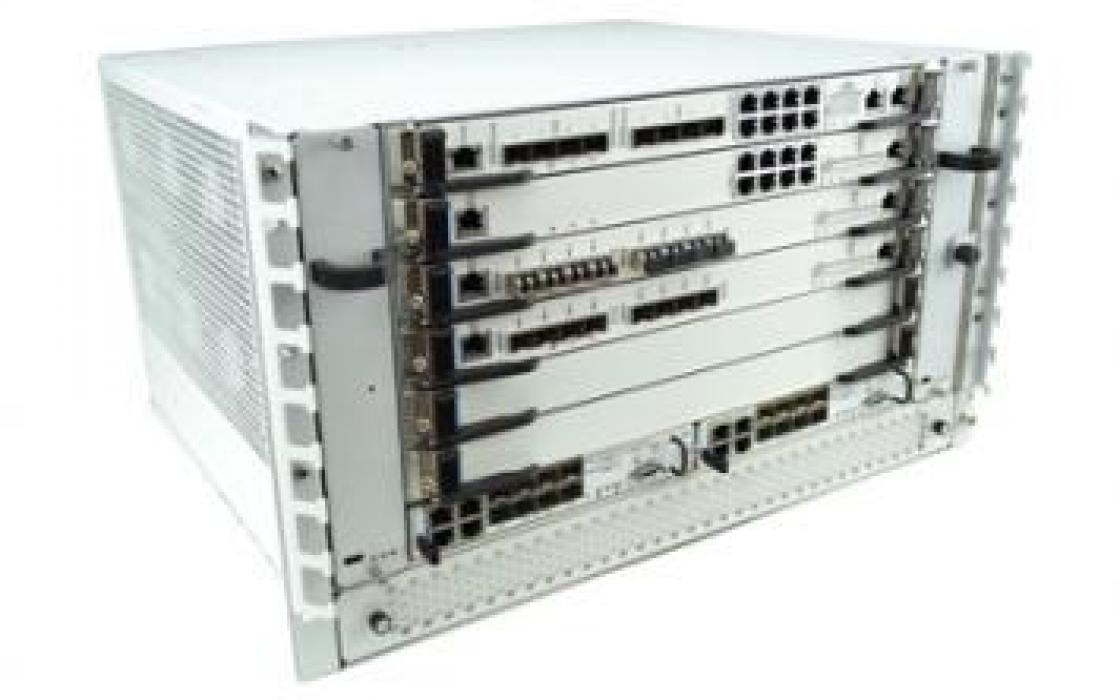

A redundant shelf manager integrated with the switch fabric saves the two slots that are usually dedicated switch fabric slots in the ATCA Chassis. The two extra slots are utilized as standard payload slots, allowing more boards/performance in significantly less space. The PXS0640 can optionally be configured for full HA redundancy across all FRUs, including power modules, cooling units, shelf managers/telco alarm, and switches. If AC power is not required, 5U chassis option is available.
10G/40G/100G versions are available.

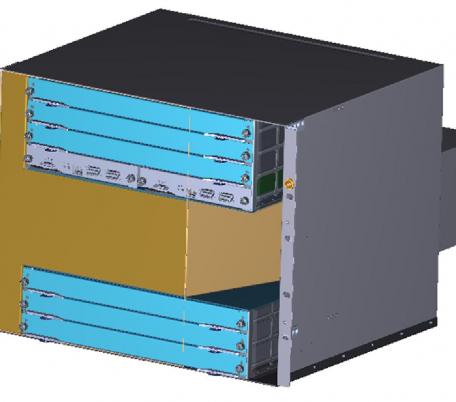

Rear evacuative cooled facilitates up to 325W/slot in a front-to-rear cooled design for a horizontal mount chassis. Superior design for balanced cooling and NEBS compliance. 10G, 40G, or 100G versions.

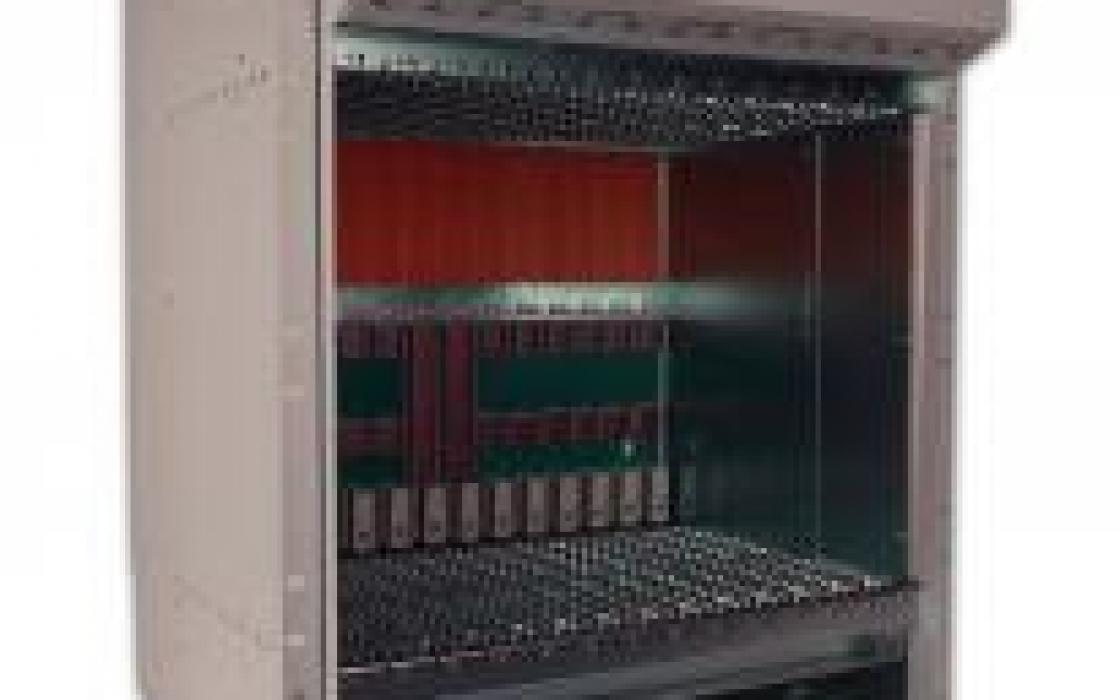

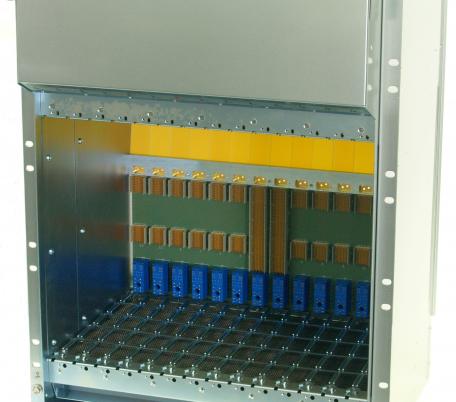

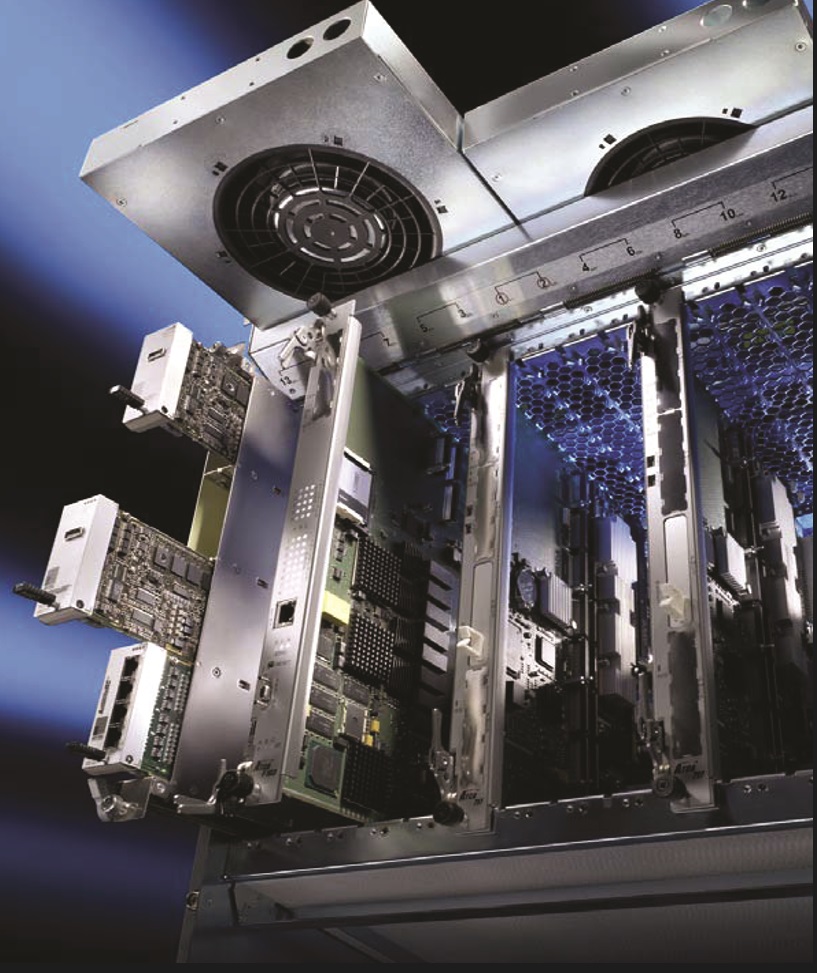

The 13U Pixus chassis is able to cool up to 275W/slot, while the 15U can cool up to 400W/slot. These levels can be achieved while maintaining NEBS compliance. The 13U shelf design has over 15,000 global installs. The enclosures feature a 14-Slot Backplane in 10G, 40G, or 100G versions. The Pixus Shelf offers patented EMC mats in the subrack. This design solution helps EMC without degrading airflow.

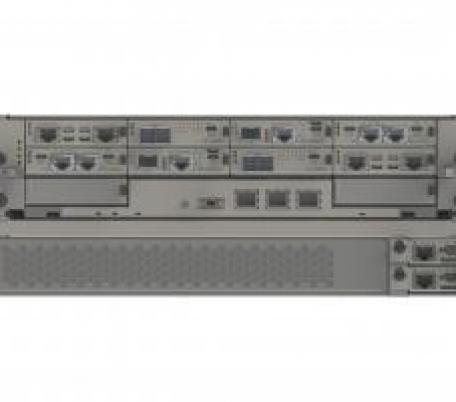

Includes extremely high-performance 3U ATCA/MTCA hybrid with 8 AMC slots and one ATCA processor. Combines AMC's superior IO with ATCA processing power.
Other ATCA shelf sizes are available including 5U horizontal.
