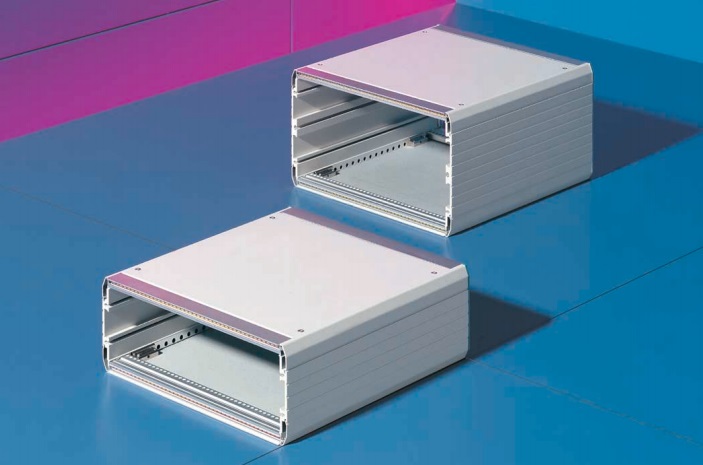

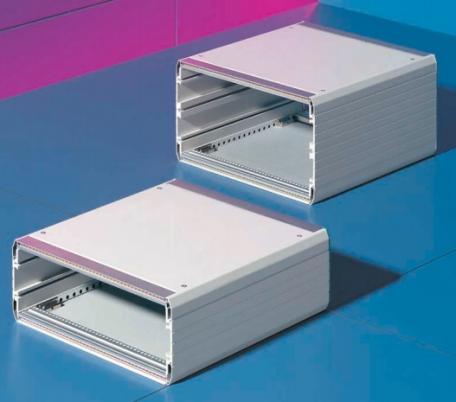

The Versatile Vario Series is a modular instrumentation and custom electronics case based on the Vario subrack.  It comes in various heights (1U-8U), widths (42HP, 63HP, 84HP), and depths (250mm-370mm) and in desktop or rackmount styles.  Larger sizes (7U, 8U) for desktop cabinet rack designs are available. EMC shielding options range from basic to advanced.

Features:

  • Highly versatile range of heights, widths, and depths
  • Enclosure designed to IEC 60 297
  • Optional use as instrument case or rack-mounted enclosure
  • Protection category IP 40
  • Extruded aluminum section
  • Depth-variable interior installation
  • EMC protection from basic to advanced
  • Wide range of accessories
  • Customization available

Material/Surface Finish:

Side panels, Horizontal rails, Side trim: Extruded aluminum section, spray finished in RAL 7035

Corner trim: Die-cast zinc, spray finished in RAL 7035

Covers: Sheet steel, spray finished in RAL 7035

Contact points: Conductive
