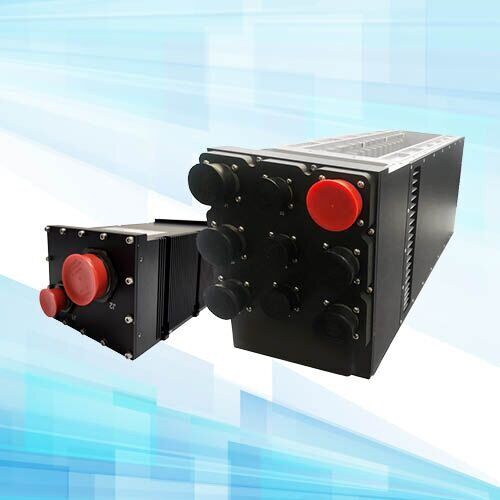

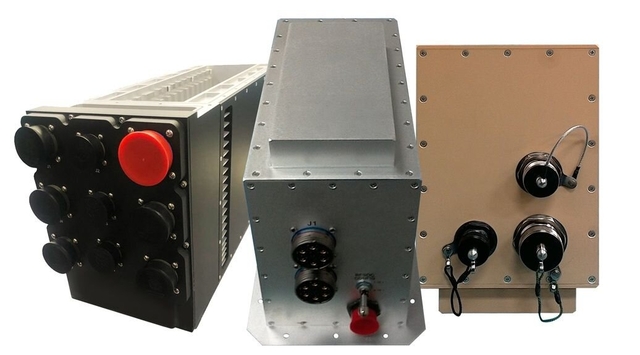

MIL Rugged ATR Chassis Platforms

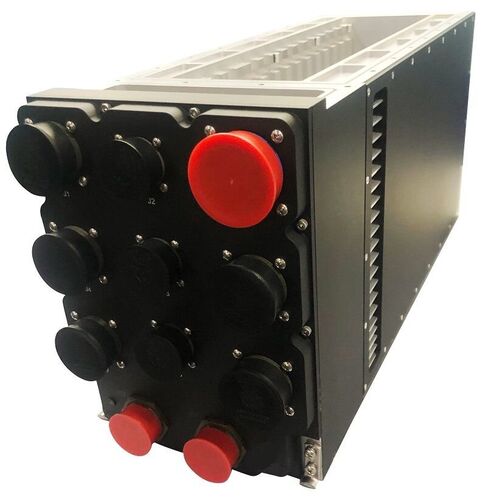

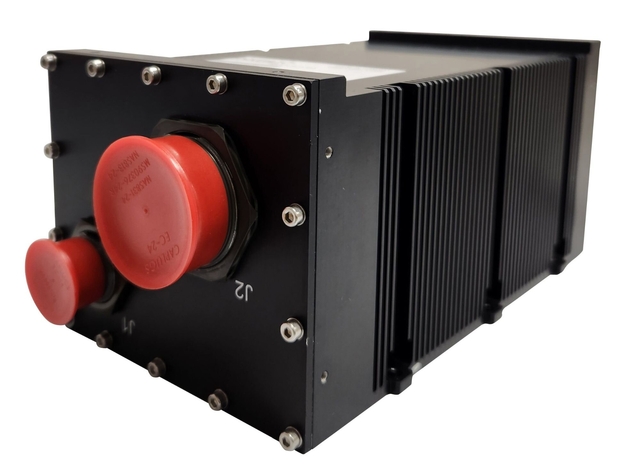

Modular ATR sizes of 1/4 (ATR014), 1/2 (ATR012), and 3/4 (ATR034), 1 ATR and other sizes with various heights and depths.  Based on proven, qualified base platforms, the units are designed for MIL 810 and MIL 461 and other specifications, tailored to your specific application.   Various cooling options include conduction (natural convection or cold plate), airflow over fins, Airflow Through Module (AFT) per VITA 48.5 (others available upon request) , Liquid Flow Through (LFT) per VITA 48.4, liquid through sidewalls, and more.

Multiple versions include:

• Configurations and options for 3U and 6U OpenVPX / SOSA aligned boards

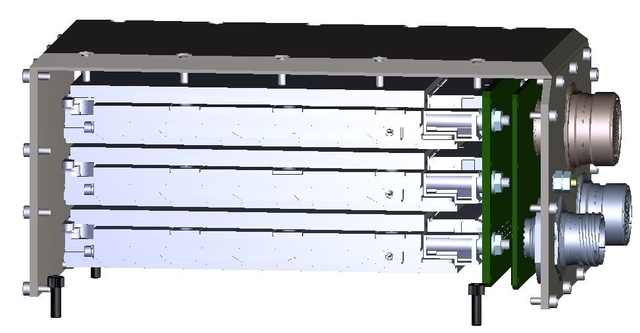

• Compact rear-loaded ATRs (often 2-3 slots, but larger available)
• Options for CMFF form factor, rear-loaded
• Various cooling options including conduction, airflow over fins (for VITA 48.2 boards), AFT, LFT, liquid through sidewalls
• SpaceVPX options
