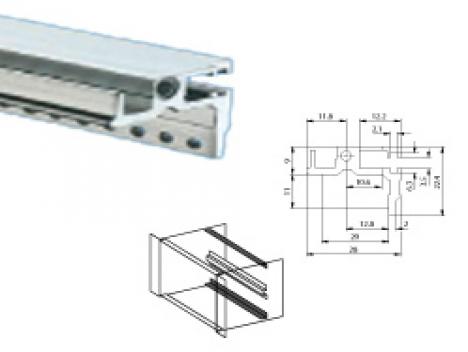

Part Profile and Dimensions


For accommodation of guide rails, Integral Z rail for mounting of DIN 41 612 connectors.

  • HP pitch pattern of holes for exact mounting of guide rails
  • 84 threaded holes M2.5 for fitting DIN 41 612 connectors
  • M4 thread at ends
  • Straight-through core hole

Material:
Extruded aluminum

Surface finish:
Clear chromated

Rear Horizontal Rail With Integral Z Rail (C3)
