Part Profile and Dimensions

For accommodation of guide rails and securing of Z rails, insulatiing or contact strips

  • HP pitch pattern of holes for precise installation of guide rais
  • M 2.5 for fastening the Z rails, insulating or contact strips and backplanes
  • M4 threat at ends
  • Straight-through core hole
  • Horizontal rail 192HP for cutting into length

Extruded aluminum

Surface finish:
Clear chromated
Flash anodized

Rear Horizontal Rail C1 Order Info

Including 4 assembly screws

Note: Order assembly screws separately.

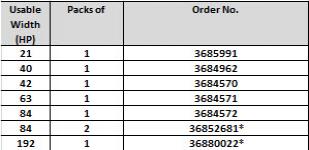

Rear Horizontal Rail C1 Assembly Screws Order Info
