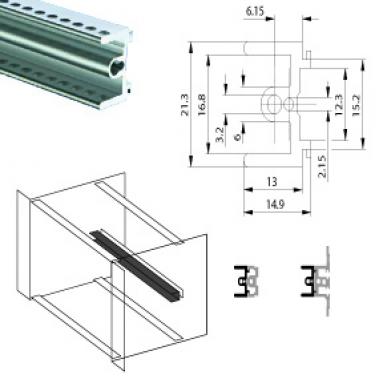

Part Profile and Dimensions

When dividing 6U into 2U and 3U, the adapter rail fastened to the center horizontal rail accommodates the guide rails.

  • HP pitch pattern of holes for precision installation of guide rails
  • M4 thread at ends
  • Straight-through core hole
  • Horizontal rail 192HP for cutting to length

Surface Finish:
Clear chromate

Extruded aluminum
Flash anodized

Rear Adapter Rail Center (E)

Rear Adapter Rail Center (E) Assembly Screws Info
