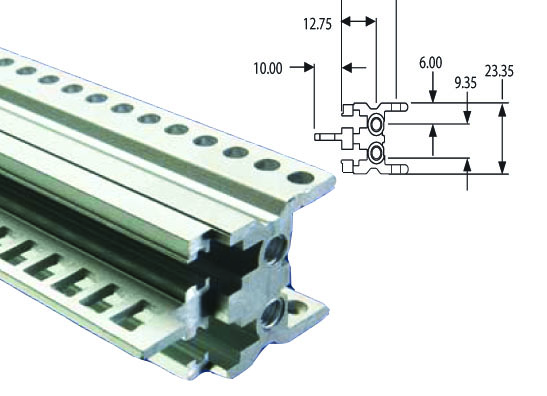

Part Profile and Dimensions






For the attachment of Guide Rails on both sides.
One side with 10 mm extension
One side without 10 mm extension

Material/Surface Finish:
Clear chromated
EMC gaskets

Double Front Horizontal Rail, With 10 mm Extension (B1)-Version 1

Double Front Horizontal Rail, With 10 mm Extension (B1)-Version 1 Assembly Screw
